Home > Weather Shield for 4.3-10 Male Connector

Weather Shield for 4.3-10 Male Connector

Category: Weatherproofing

Description

    Weather Shield for 4.3-10 Male Connector is newly designed to quickly seal 4.3-10 male connector or 4.3-10 female connector to antenna. It fits both 1/2" standard cable and 1/2" superflex cable. The plastic enclosure contains an innovative gel material and provides an efficient block against moisture and salt mist.
    Advantages of our weather Shield:
    1) Quick installation, just take seconds
    2) Easy removable & reusable
    3) Don't need special training
    4) Excellent sealing performance

    Quick Look
    Material: PP + Gel
    IP Rating: IP68
    RoHS Compliant: Pass

    Warranty: 3 years
    Packaging: 1 pc per box
    Download Data Sheet: WS12-4310
    Products Suggested: 4.3/10 Male for 1/2" Cable

    WS12-4310          Weather Shield for 4.3-10 Male Connector
    weathershield 4.3-10 connector

    How to install our weather shield? It's very simple and quick, take a look at below steps:

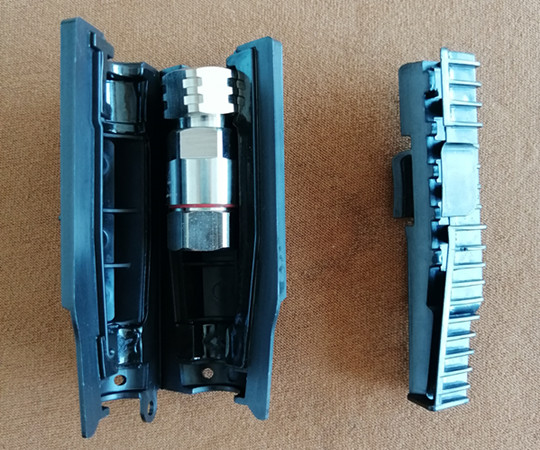

    Step 1, take the weather shield out from the individual package, open the weather shield and place 4.3-10 connector inside.

    weather shield

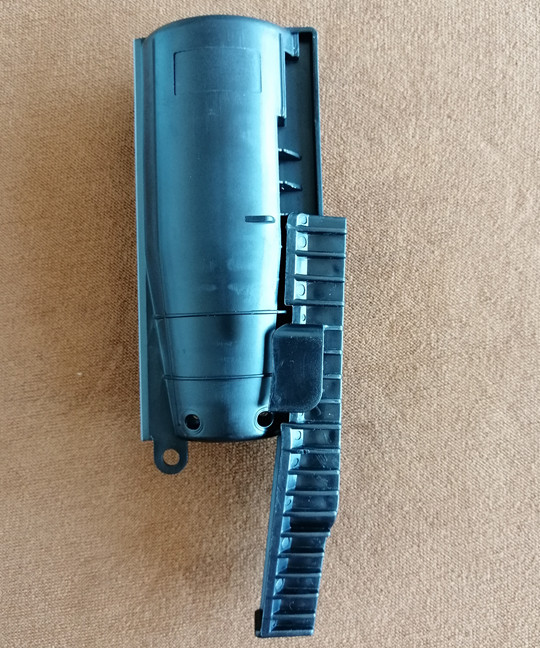

    Step 2, Close the weather shield body.
    weahter shield

    Step 3, install the locking slider provided in the package until you hear the sound "click" and it's done.
    how to install weather shield

    Products Suggested: 1/2" Superflex Jumper 4.3-10 Male to 7/16 Male

    You May Also Need RF Connectors and Grounding Kits
    4.3-10 Connectors
     Part #  Description
     43M-14S  4.3-10 Male for 1/4” Superflex
     43M-12S  4.3-10 Male for 1/2” Superflex
     43M-12  4.3-10 Male for 1/2” Standard
     43F-14S  4.3-10 Female for 1/4” Superflex
     43F-12S  4.3-10 Female for 1/2” Superflex
     43F-12  4.3-10 Female for 1/2” Standard

    Volda provides a broad range of rf connectors, including din type connectors, n type connectors, sma connectors, bnc connectors, flange connectors, 4.3-10 connectors, etc. Our connectors are designed according to IEC 60169-6 standard, and are excellent in both reliability and functionality.

    Bolt On Type Grounding Kits
     Part #  Description
     GKB38-150-2U  Grounding Kit for RG8, LMR400, 3/8" Cable, 60" Ground Lead
     GKB12-150-2U  Grounding Kit for 1/2" Cable, 60" Ground Lead
     GKB78-150-2U  Grounding Kit for 7/8" Cable, 60" Ground Lead
     GKB114-150-2U   Grounding Kit for 1 1/4" Cable, 60" Ground Lead
     GKB158-150-2U  Grounding Kit for 1 5/8" Cable, 60" Ground Lead

    Bolt On Type Cable Grounding Kit, it is an traditional grounding solution for standard coaxial cables. It can provide an easy installation and reliable protection for cable grounding system. The pre-formed strap is copper material or tinned copper as required, which allows the grounding kits to be easily installed over the outer conductor of coaxial cables.

    Volda provides various grounding kits such as universal type, clip on type, bolt on type, self sealing type. Our grounding kits can fit with worldwide brands of coaxial cables like CommScope, Times Microwave, Amphenol, Huber+Suhner, Rosenberger, RFS, etc.

    What Can We Do
    We are an experienced telecommunication manufacturer and leading provider of BTS accessories since 2005. With many years of manufacturing and rich experience in telecom industry, Volda has set up two plant areas to provide a full line of coax accessories and weatherproofing to our clients around the world. We also provide 3-year warranty to all of our products.

    Our products have been selected and used by both operators and distributors throughout the world, covering North America, Europe, South America, Middle East, etc. And we have these following advantages:
    ► Professional team work
    ► Experienced manufacturing & custom designing
    ► Self-owned tooling department
    ► Quality inspection from materails to product assembling
    ► Free samples provided, excellent export packaging

    A Professional Manufacturer and Supplier for RF Coaxial Cables & Accessories
    To Grow Your Business with The Trustworthy Supplier - Volda Since 2005

    weatherproof enclosure
