Waveguide Bridge Kit

Category: Galvanized Products

Description

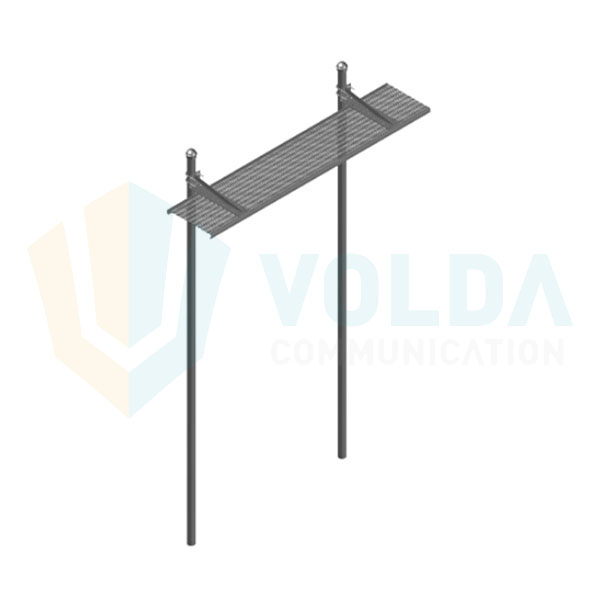

    Waveguide Bridge Kit, also named Ice Bridge Kit, it's a complete solution for support & protect from damaging horizontal runs of coaxial cable & waveguide. The waveguide bridge kit consists of (2) base shoe post, (2) base shoe post cap, (2) waveguide bridge support bracket and (3) triple tee trapeze kit.

    WBK12-126-35
    12" Waveguide Bridge Kit w/ (2) Base Shoe Post 3-1/2'' x 10'6'', (2) Base Shoe Post Cap, (2) 12" Waveguide Bridge Support Bracket and (3) 12" Triple Tee Trapeze Kit.

    WBK24-126-35
    24" Waveguide Bridge Kit w/ (2) Base Shoe Post 3-1/2'' x 10'6'', (2) Base Shoe Post Cap, (2) 24" Waveguide Bridge Support Bracket and (3) 24" Triple Tee Trapeze Kit.

    Galvanized Steel Products Sold Separately Below
     Part #  Description
     HH-LB12-3  Waveguide Bridge Support Bracket 12" Wide for 3-1/2" OD Legs
     HH-LB24-3  Waveguide Bridge Support Bracket 24" Wide for 3-1/2" OD Legs

    Waveguide Bridge Support Brackets (Horsehead Brackets)
    Galvanized steel construction.
    Side-mounted design to support 12" or 24" waveguide bridge.
    U bolts and hardware included.



     Part #  Description
     BSP-126-20  Base Shoe Post, 10'6" x 2.38" OD
     BSP-126-25  Base Shoe Post, 10'6" x 2.75" OD
     BSP-126-35  Base Shoe Post, 10'6" x 3.5" OD

    Base Shoe Post is manufactured from hot dip galvanzied steel.
    The post is 3.5” OD x 10’6” long, thickness 5mm.
    The mounting plate is 8" x 8" with hardware inlcuded.



     Part #  Description
     PC-2010  Pipe to Pipe Clamp Set for 1-1/2" to 3-1/2" OD, Light Duty
     PC-3010  Pipe to Pipe Clamp Set for 1-1/2" to 3-1/2" OD, Heavy Duty
     PC-3514  Pipe to Pipe Clamp Set for 2-3/8" to 5" OD, Heavy Duty
     PC-3518  Pipe to Pipe Clamp Set for 2-3/8" to 5" OD, Heavy Duty, 18" T-Rod

    Pipe to Pipe Clamp Sets, are manufactured from hot dip galvanized steel. It mounts two pipes parallel to each other. It's adaptable to varying pipe sizes and available in both 1/4" thick and 1/2" thick clamp thickness. Each pipe to pipe clamp set includes (4) galvanized threaded rod, (8) galvanized clamp half, (16) galvanized flat washer, (16) galvanized lock washer, (16) galvanized hex nut.

    If you are interested in our other products such as cable ladder rungs, z brackets, square washers, antenna and rru cable support brackets, welcome to send your requests to us at email sales@voldatech.com.

    What Can We Do
    We are an experienced telecommunication manufacturer and leading provider of BTS accessories in China since 2005. With many years of manufacturing and rich experience in telecom industry, Volda has set up two plant areas to provide a full line of coax accessories and weatherproofing to our clients around the world. We also provide 3-year warranty to our galvanized products.

    Our products have been selected and used by both operators and distributors throughout the world, covering North America, Europe, South America, Middle East, etc. And we have these following advantages:
    ► Professional team work
    ► Experienced manufacturing & custom designing
    ► Self-owned tooling department
    ► Quality inspection from materails to product assembling
    ► Free samples provided, excellent export packaging
