Cluster Support Bracket, PIM-Guard Cable Support Bracket

Cluster Support Bracket

Category: Galvanized Products

Description

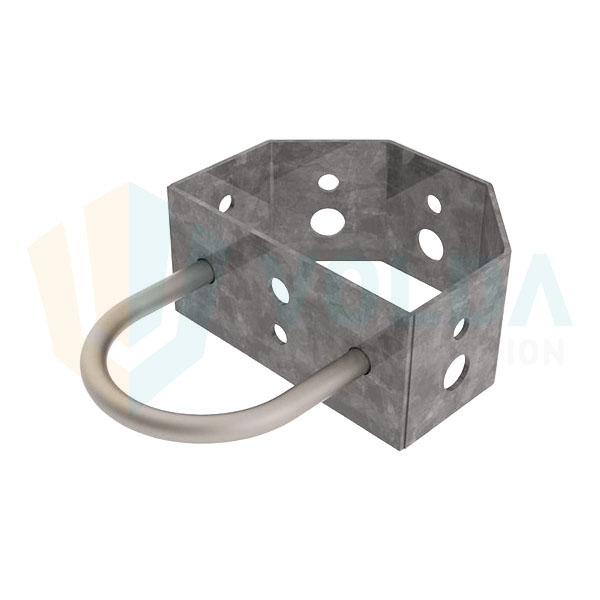

Cluster Support Bracket

Hot dipped galvanzied steel construction.

Cluster support bracket allows coax cables to run outside of the bracket. It has pre-punched 3/4" holes to accept up to five snap in hangers and 7/16" holes for 3/8" mounting hardware. Cluster support bracket also includes a galvanized u-bolt in the kit to mount onto 3-1/2" OD pipe.

Other Galvanized Steel Products

U Bolt Crossover Plate Kits

Part #	Description
CPK-2020	Crossover Plate Kit for 2 3/8" - 2 3/8" OD
CPK-2025	Crossover Plate Kit for 2 3/8" - 2 7/8" OD
CPK-2030	Crossover Plate Kit for 2 3/8" - 3 1/2" OD
CPK-2040	Crossover Plate Kit for 2 3/8" - 4 1/2" OD
CPK-2525	Crossover Plate Kit for 2 7/8" - 2 7/8" OD
CPK-2530	Crossover Plate Kit for 2 7/8" - 3 1/2" OD
CPK-3030	Crossover Plate Kit for 3 1/2" - 3 1/2" OD
CPK-3040	Crossover Plate Kit for 3 1/2" - 4 1/2" OD

U-Bolt Style Crossover Plate Kits

are manufactured from hot dip galvanized steel. It is used at rooftop and tower sites to mount two varying pipes in 90

º fashion. Volda offers crossver plates for pipe sizes 2 3/8", 2 7/8", 3 1/2", 4 1/2" OD or custom sizes.

Each crossover plate kit includes u-bolts and all mounting hardware.

PIM-Guard Cable Support Brackets

Part #	Description
ACS-4R	PIM-Guard Cable Support Bracket to 4 Cables
ACS-8R	PIM-Guard Cable Support Bracket to 8 Cables
ACS-23R	PIM-Guard Cable Support Bracket to 23 Cables

PIM-Guard Antenna and RRU Cable Support Brackets

Pre-punched 7/16″ and 3/4″ mounting holes for coax installation.

Mounts up to 23 cable supports.
Adjustable stand-off distance.
Mounts to 2 3/8" to 4 1/2" OD pipe.

If you are interested in our other products such as

pipe to pipe clamps,

z brackets

square washers

antenna and rru cable support brackets

, welcome to send your requests to us at email sales@voldatech.com.
